Key Control Valve Parts That Ensure Durability and Efficiency in Modern Applications

Control valves are fundamental components in countless industrial systems, from oil and gas pipelines to food and beverage processing plants. They are the final control element in a process loop, managing the flow of fluids to maintain process variables like pressure, temperature, and flow rate. Understanding the parts of a control valve is essential for ensuring the system's durability, efficiency, and safety.

This guide explores the intricate world of control valves. We will cover their basic functions, different types, and the critical parts that make them work. You will learn about the roles of actuators, positioners, and regulators. Additionally, we will provide best practices for maintenance and discuss the latest technological innovations that are shaping the future of fluid control. By the end, you'll have a comprehensive understanding of what it takes to keep these vital components operating at peak performance.

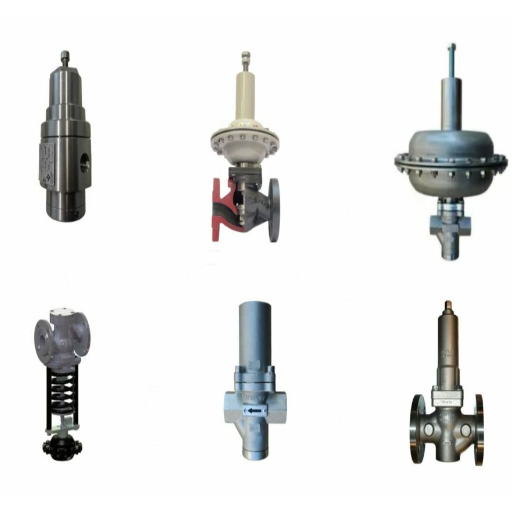

Understanding Control Valves

What is a Control Valve?

A control valve is a power-operated device used to regulate the flow of fluids, such as liquids, gases, or slurries, through a pipe. It works by varying the size of the flow passage as directed by a signal from a controller. This allows for precise management of process conditions, ensuring stability and safety.

The valve modifies the fluid flow by opening, closing, or partially obstructing the passageway. This function is critical for automating complex industrial processes, where manual control would be impractical or impossible.

Importance of Control Valves in Modern Systems

Control valves are the workhorses of process control. Their importance cannot be overstated. They are responsible for:

• Maintaining Process Variables: They keep variables like temperature, pressure, and liquid level within a desired range, which is essential for product quality and consistency.

• Ensuring Safety: By controlling pressure and flow, valves prevent system overloads that could lead to equipment failure, leaks, or catastrophic accidents.

• Optimizing Efficiency: Proper flow control helps reduce energy consumption and minimize waste, directly impacting a company's bottom line.

• Automating Processes: Control valves are key to automation, allowing facilities to run continuously with minimal human intervention, increasing productivity and reducing operational costs.

How Control Valves Work

A control valve system consists of three main parts: the valve body, the actuator, and the positioner.

• The valve body contains the internal components that come into contact with the fluid and modulate its flow.

• The actuator is the "muscle" that provides the force to open or close the valve. It converts an energy source (pneumatic, electric, or hydraulic) into mechanical motion.

• The positioner acts as the "brain," ensuring the valve reaches the exact position dictated by the control signal. It compares the controller's signal to the actuator's actual position and makes adjustments as needed.

When a controller detects a deviation from the setpoint (e.g., pressure is too high), it sends a signal to the valve's actuator. The actuator then moves the valve's closure member (like a plug or disc) to adjust the flow, bringing the process variable back to the desired level.

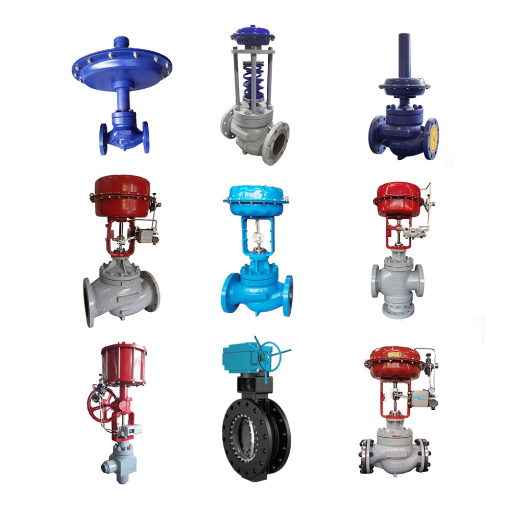

Types of Control Valves and Their Applications

Overview of Valve Types

Control valves are generally categorized based on their motion (linear or rotary) and the design of their closure member.

• Linear Motion Valves:

•


• Globe Valves: Excellent for throttling and precise flow control. The plug moves perpendicular to the seat.

• Gate Valves: Primarily used for on/off service. A flat gate slides into the flow stream. Not ideal for throttling.

• Diaphragm Valves: Use a flexible diaphragm to control flow. Ideal for corrosive or viscous fluids as the fluid is isolated from the valve's operating parts.

• Rotary Motion Valves:

•


• Ball Valves: A spherical closure member with a bore rotates to control flow. Offer quick shut-off and good sealing.

• Butterfly Valves: A circular disc pivots in the flow path. Lightweight, cost-effective, and suitable for large-diameter pipes.

• Plug Valves: A cylindrical or tapered plug with a bore rotates to control flow. Similar to ball valves but often used in high-temperature services.

Specific Applications for Different Types of Valves

Different industries rely on specific valve types to meet their unique challenges.

• Oil and Gas: Gate and ball valves are widely used for on/off isolation in pipelines, while globe valves are preferred for throttling applications in processing units.

• Chemical Processing: Diaphragm and plug valves are common due to their ability to handle corrosive chemicals and slurries.

• Water and Wastewater: Butterfly valves are frequently used in large-diameter pipelines for water distribution and treatment due to their low cost and simple design.

• Power Generation: High-pressure globe valves are essential for controlling steam flow to turbines, a critical function for generating electricity.

Comparison of Hydraulic Valves and Other Types

While many control valves use pneumatic (air-powered) or electric actuators, hydraulic valves are another important category.

• Pneumatic Valves: The most common type. They use compressed air to power the actuator. They are fast-acting, reliable, and relatively inexpensive.

• Electric Valves: Use an electric motor to drive the actuator. They offer precise positioning but are generally slower than pneumatic valves and can be more complex.

• Hydraulic Valves: Use a pressurized fluid (usually oil) to power the actuator. They can generate immense force, making them ideal for applications requiring high thrust, such as large dampers or main steam isolation valves. However, they require a hydraulic power unit and can be prone to fluid leaks.

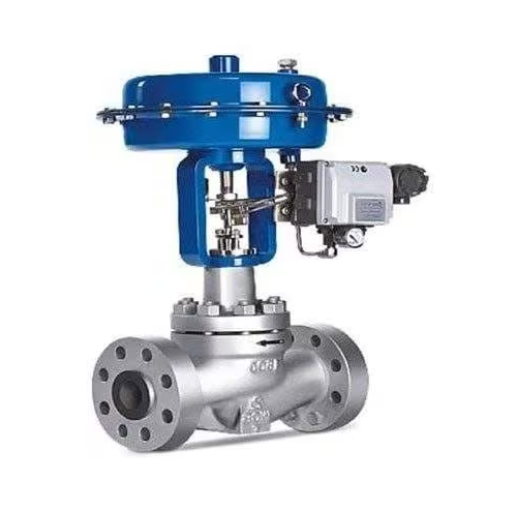

Key Control Valve Parts and Their Functions

Essential Control Valve Parts

Here are the fundamental components found in most control valves:

• Valve Body: The main pressure-containing structure of the valve, which houses the internal trim and provides the connections to the pipeline.

• Bonnet: The cover for the opening in the valve body. It supports the actuator and guides the stem.

• Trim: The internal parts of the valve that are in contact with the flowing fluid. The trim determines the valve's flow characteristics. Key trim components include:

•


• Seat: The stationary part of the valve port that the closure member presses against to shut off flow.

• Closure Member (Plug, Disc, Ball): The movable part that obstructs the flow path. Its shape is critical for flow control.

• Stem: The rod that connects the actuator to the closure member, transmitting the force to move it.

• Actuator: The device that provides the power to operate the valve. It responds to the control signal. Common types are pneumatic, electric, and hydraulic.

• Packing: A sealing system (often composed of rings) that prevents fluid from leaking out of the valve around the stem.

The Role of Valve Positioners

A valve positioner is a device that enhances the performance of a control valve. It acts as a feedback controller, ensuring the valve stem moves to the precise position required by the control system.

• Function: It compares the control signal from the main controller with the actual position of the valve stem. If there is a discrepancy, the positioner adjusts the pressure to the actuator until the stem is in the correct position.

• Benefits:

•


• Improved Accuracy: Overcomes friction and pressure imbalances that could prevent the valve from reaching the desired position.

• Faster Response: Speeds up the valve's response to changes in the control signal.

• Diagnostic Capabilities: Modern "smart" positioners can monitor valve performance, detect problems like sticking or leaks, and provide valuable diagnostic data for predictive maintenance.

Understanding Regulators and Their Importance

While often confused with control valves, regulators serve a different but related purpose. A regulator is a self-contained device that automatically maintains a preset downstream pressure or temperature without an external controller.

• How They Work: A regulator uses the downstream pressure itself as the feedback signal. A spring-loaded diaphragm or piston balances against the fluid pressure. If the downstream pressure changes, the diaphragm moves, adjusting the valve opening to restore the set pressure.

• Applications: Regulators are used where a constant outlet pressure is needed, regardless of fluctuations in the inlet pressure or flow demand. Examples include pressure reduction stations for natural gas distribution or providing a steady supply of instrument air.

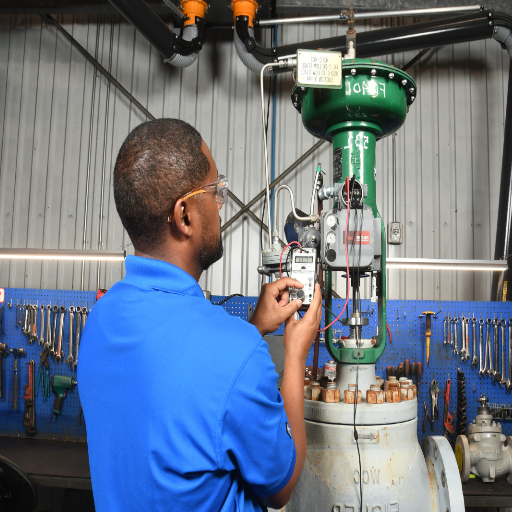

Maintaining Durability and Efficiency in Control Valves

Best Practices for Maintaining Control Valve Parts

A proactive maintenance strategy can prevent costly downtime and failures.

• Regular Inspections: Visually inspect valves for leaks, corrosion, or physical damage. Check that the actuator is moving smoothly.

• Lubrication: Periodically lubricate moving parts, such as the stem and actuator linkages, according to the manufacturer's recommendations.

• Packing Adjustment: Monitor the stem packing for leaks. Tighten the packing gland bolts as needed, but avoid over-tightening, which can increase friction and cause stem wear.

• Calibration: Regularly calibrate positioners and other instruments to ensure the valve responds accurately to control signals.

• Diagnostic Testing: Use smart positioners and other diagnostic tools to perform tests that can identify developing problems before they become critical.

Identifying and Addressing Common Issues

Several common problems can affect control valve performance.

• Leakage: Can occur through the packing (external leak) or across the seat (internal leak). Packing leaks can often be fixed by tightening or replacing the packing. Seat leakage may require replacing the valve trim.

• Sticking: Caused by high friction from tight packing, viscous fluids, or internal damage. This can lead to erratic control. Identifying and addressing the source of friction is key.

• Corrosion and Erosion: The constant flow of fluid, especially if it's corrosive or contains solid particles, can wear away the valve body and trim. Selecting the right materials and managing flow velocities can mitigate this.

• Actuator Failure: Actuators can fail due to diaphragm rupture (in pneumatic types), motor burnout (in electric types), or fluid leaks (in hydraulic types). Regular inspection and maintenance of the actuator are crucial.

Innovations in Control Valve Technology

The field of control valve technology is continuously evolving, with new innovations aimed at improving performance, reliability, and intelligence.

• Smart Valves and Positioners: Digital positioners with advanced microprocessors and communication protocols (like HART or Fieldbus) are becoming standard. They provide real-time diagnostics, automated calibration, and seamless integration with plant control systems.

• Advanced Materials: The development of new alloys, ceramics, and polymers is enabling valves to handle more extreme temperatures, pressures, and corrosive services.

• 3D Printing (Additive Manufacturing): This technology is being used to create complex valve components with optimized flow paths and reduced weight. It also allows for rapid prototyping and on-demand production of spare parts.

• Wireless Technology: Wireless position sensors and communication are reducing installation costs by eliminating the need for extensive wiring. This is particularly beneficial for valves in remote or hard-to-reach locations.
